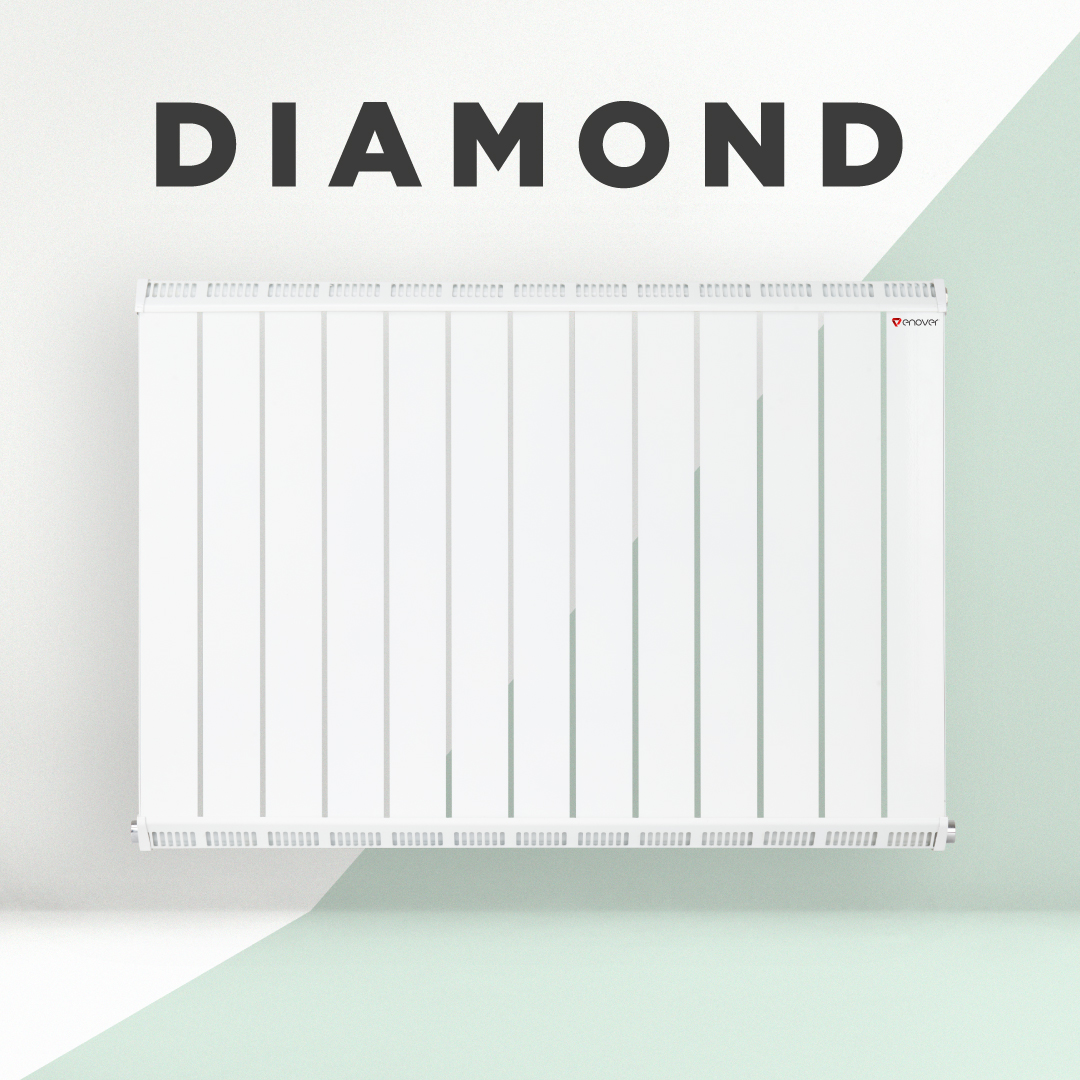

DIAMOND, whose surface area is increased with its thick structure;

In order to make the most efficient use of EHP technology, it provides a warm environment in your home with its specially designed lower and upper covers that increase air flow.

Thanks to the EHP radiators, which give high efficiency at low temperatures, it enables your boiler to operate at 28-30°C.There is very little water in the radiators with EHP. In this way, much less load will be placed on the boiler pump. The life of your boiler will increase.

EHP radiators are the first and only radiators in the world that do not require maintenance and repair.

It doesn’t require maintenance.

Technical Information

Section Width 60 mm
Section Depth 80 mm
Connection Diameter 1/2″
Max Working Pressure 10 bar
Max Working Temperature 75°C
Warranty 5 years
HEIGHT SECTION WIDTH HEAT OUTPUTS HEATING SURFACE WATER VOLUME WEIGHT
mm mm btu/h kcal/h watt m2/section l/section kg/section
300 60 154 39 45 0,162 0,01 0,51
400 60 205 52 60 0,216 0,01 0,68
500 60 256 64 75 0,270 0,01 0,85
600 60 205 52 90 0,324 0,01 1,02
700 60 358 90 105 0,378 0,01 1,19
750 60 386 97 113 0,405 0,01 1,28
800 60 409 103 120 0,432 0,01 1,36
900 60 461 116 135 0,486 0,01 1,53
1000 60 512 129 150 0,540 0,01 1,70
1250 60 641 162 188 0,675 0,01 2,13
1500 60 768 193 225 0,810 0,01 2,55
1750 60 897 226 263 0,945 0,01 2,98
2000 60 880 222 258 1,080 0,01 3,40
THE STATED VALUES REPRESENT THE HEAT OUTPUTS OF 1 SECTION ONLY. TO CALCULATE THE TOTAL HEAT
OUTPUT OF A RADIATOR; PLEASE MULTIPLY THE OUTPUT VALUES BY MEANS OF REQUIRED USAGE OF SECTIONS.

Downloads

All products are published after a long R&D studies including hundreds of CFD analyses.

Connections

Enover’s heating system works in a special method. With this technology there is no water at the top side of products. Therefore, water connections should only be made from the bottom.
