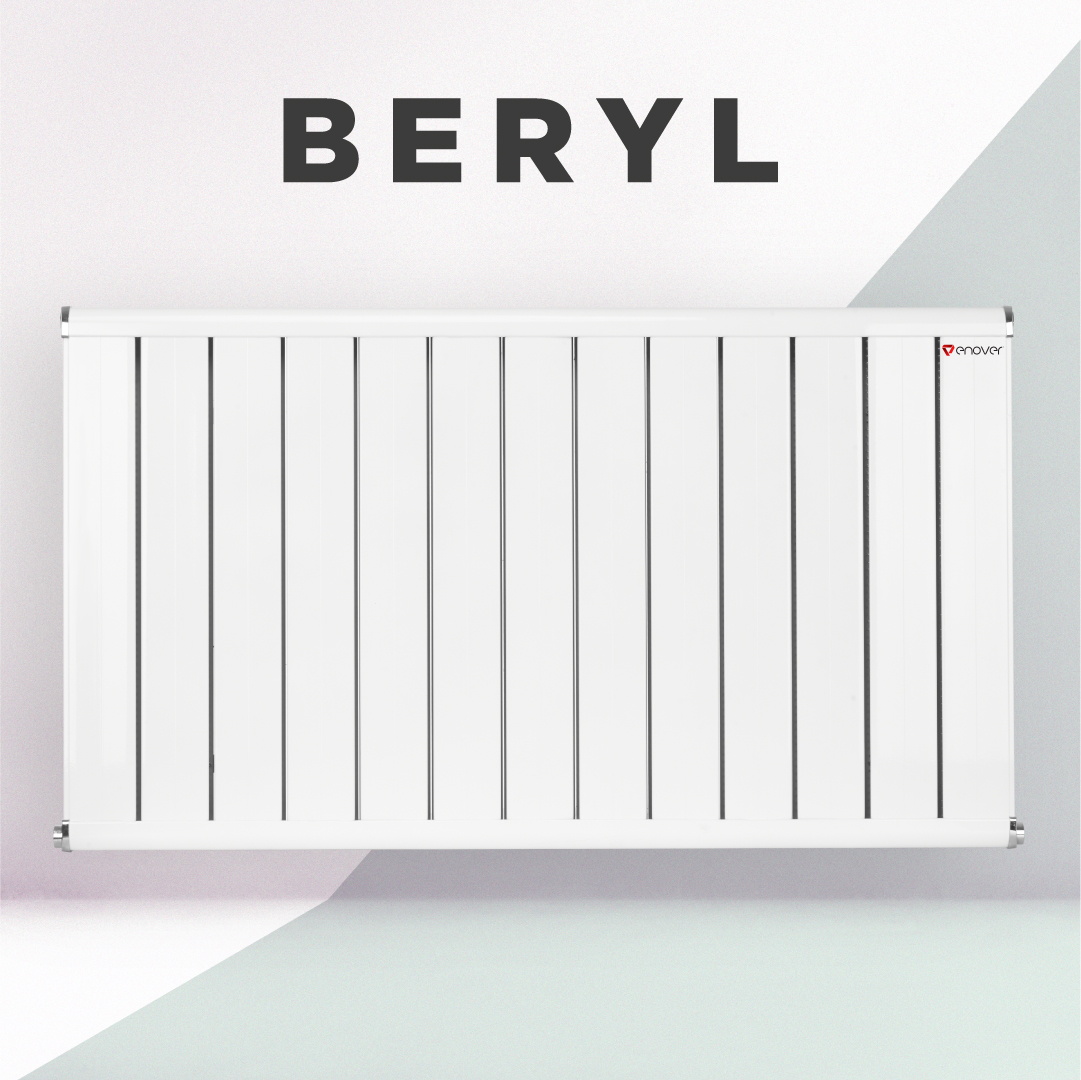

BERYL, combining EHP technology with your room with its slim and stylish design;
 It reflects your style to your living space with its wide range of color options.

Thanks to the EHP radiators, which give high efficiency at low temperatures, it enables your boiler to operate at 28-30°C.There is very little water in the radiators with EHP. In this way, much less load will be placed on the boiler pump. The life of your boiler will increase.

EHP radiators are the first and only radiators in the world that do not require maintenance and repair.

It doesn’t require maintenance.

Technical Information

Section Width 80 mm
Section Depth 40 mm
Connection Diameter 1/2″
Max Working Pressure 10 bar
Max Working Temperature 75°C
Warranty 5 years
HEIGHT SECTION WIDTH HEAT OUTPUTS HEATING SURFACE WATER VOLUME WEIGHT
mm mm btu/h kcal/h watt m2/section l/section kg/section
300 80 229 58 67 0,114 0,01 0,45
400 80 304 77 89 0,152 0,01 0,55
500 80 375 95 110 0,191 0,01 0,64
600 80 454 114 133 0,229 0,01 0,74
700 80 529 133 155 0,267 0,01 0,84
750 80 566 143 166 0,286 0,01 0,89
800 80 604 152 177 0,305 0,01 0,94
900 80 682 172 200 0,343 0,01 1,04
1000 80 751 189 220 0,381 0,01 1,14
1250 80 945 238 277 0,476 0,01 1,38
1500 80 1133 285 332 0,572 0,01 1,63
1750 80 1324 334 388 0,667 0,01 1,87
2000 80 1512 381 443 0,762 0,01 2,12
THE STATED VALUES REPRESENT THE HEAT OUTPUTS OF 1 SECTION ONLY. TO CALCULATE THE TOTAL HEAT
OUTPUT OF A RADIATOR; PLEASE MULTIPLY THE OUTPUT VALUES BY MEANS OF REQUIRED USAGE OF SECTIONS.

Downloads

All products are published after a long R&D studies including hundreds of CFD analyses.

Connections

Enover’s heating system works in a special method. With this technology there is no water at the top side of products. Therefore, water connections should only be made from the bottom.
